Generating WireGuard QR codes for fast mobile deployments

If you have been following along on my Gain Flexibility & Increase Privacy with WireGuard VPN "mini-course", you'll notice that there are a few areas that we need apply configurations in order for our devices to get connected.

Typing all of this in manually on mobile can be a massive pain, especially if you are supporting a remote device for a user.

QR Codes to the rescue!

We can use QR codes to send VPN configuration files out. This is brilliant engineering on WireGuard's part.

Prerequisites

You need a working Ubuntu 20.04 WireGuard VPN Server (learn how to set that up here)
You will need the qrencode package installed on your server

Installing the package is easy. Run this command on your SERVER:

Install qrencode

sudo apt install qrencode

Creating the client keys

Unlike macOS and Windows (where our keys are generated on the server), we will need to create the configuration on the server itself.

I like to keep my client configurations in "/etc/wireguard/clients", so let's make that directory on the server. I am also going to create a keypair called mobile, so you will see me reference this name again throughout my post.

Create client directory and keys

sudo mkdir -p /etc/wireguard/clients; wg genkey | sudo tee /etc/wireguard/clients/mobile.key | wg pubkey | sudo tee /etc/wireguard/clients/mobile.key.pub

IMPORTANT NOTE: Be sure to change the mobile name in that command to a descriptive client name of your choice (for both the private and public key).

Creating the client configuration file

We'll then need to create a client configuration file to be encoded into a QR code. We'll use nano to do the trick:

Create client config file

sudo nano /etc/wireguard/clients/mobile.conf

This is what we will want our "/etc/clients/mobile.conf" file to look like:

Client configuration template

[Interface]
PrivateKey = abcdefghijklmnopqrstuvwxyz1234567890=+
Address = YOUR_VPN_PRIVATE_IP/24
DNS = 1.1.1.1, 1.0.0.1

[Peer]
PublicKey = YOUR_SERVER_PUBLIC_KEY
AllowedIPs = 0.0.0.0/0
Endpoint = YOUR_SERVER_WAN_IP:51820

IMPORTANT: You need to replace YOUR_SERVER_PUBLIC_KEY, YOUR_VPN_PRIVATE_IP and YOUR_SERVER_WAN_IP

ALSO IMPORTANT: Paste in the contents of your "mobile.key" for the value of PrivateKey. I used the example of abcdefg... but you can get the contents of your key by running the cat command in a separate window:

View private key

cat /etc/wireguard/clients/mobile.key

TO SAVE: While in nano, press CTRL + O to save and CTRL + X to quit.

Generate your QR code

Now that we have our file ready, we can now generate a QR code with it:

Generate QR code

qrencode -t ansiutf8 < /etc/wireguard/clients/mobile.conf

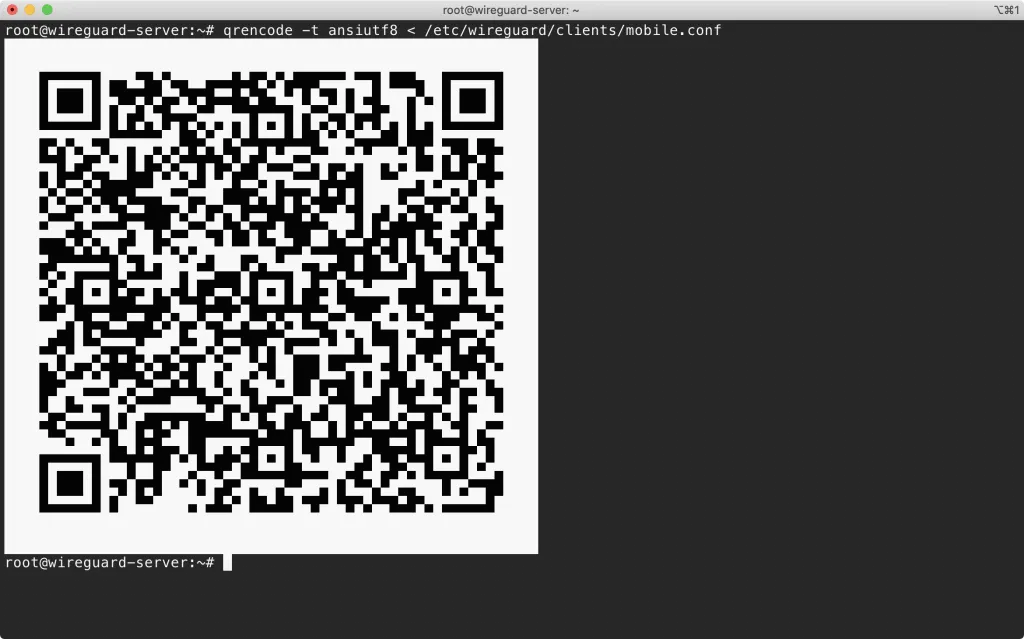

It will output an image like this:

Treat this QR code like a password! Don't just email it. You can take a screenshot and securely send it to your user so only they have access to it.

Load it into the app

All you need your user to do is open the app on their phone and hold their camera up to the QR code. You can see the entire process here:

Conclusion

QR codes make deploying WireGuard configurations to mobile devices much easier and more secure. By following these steps, you can quickly set up new mobile clients without the hassle of manual configuration.
